Description
Features
- Fast Effect- it gives quick response to produce excellent spark effect;
- New heating technology: We have developed new heating technology which enable the machine no more miss fire. The other machine in the market has the problem of heating failure;
- No Fall out: No hot sparks fall to ground;
- Adjustable height: 2-5 Meter;
- Stable Performance;
- TFT Color Screen: We use TFT color screen more professional machine setting;
- Machine can use same safety address;
- 12 button of remote controller: It enable you to set machine group on remote controller;
- Quiet Machine: it gives low noise compared to other machine in the market;
Specification
- Cold Spark Technology
- 3 Controllable Variables: Height, density and duration

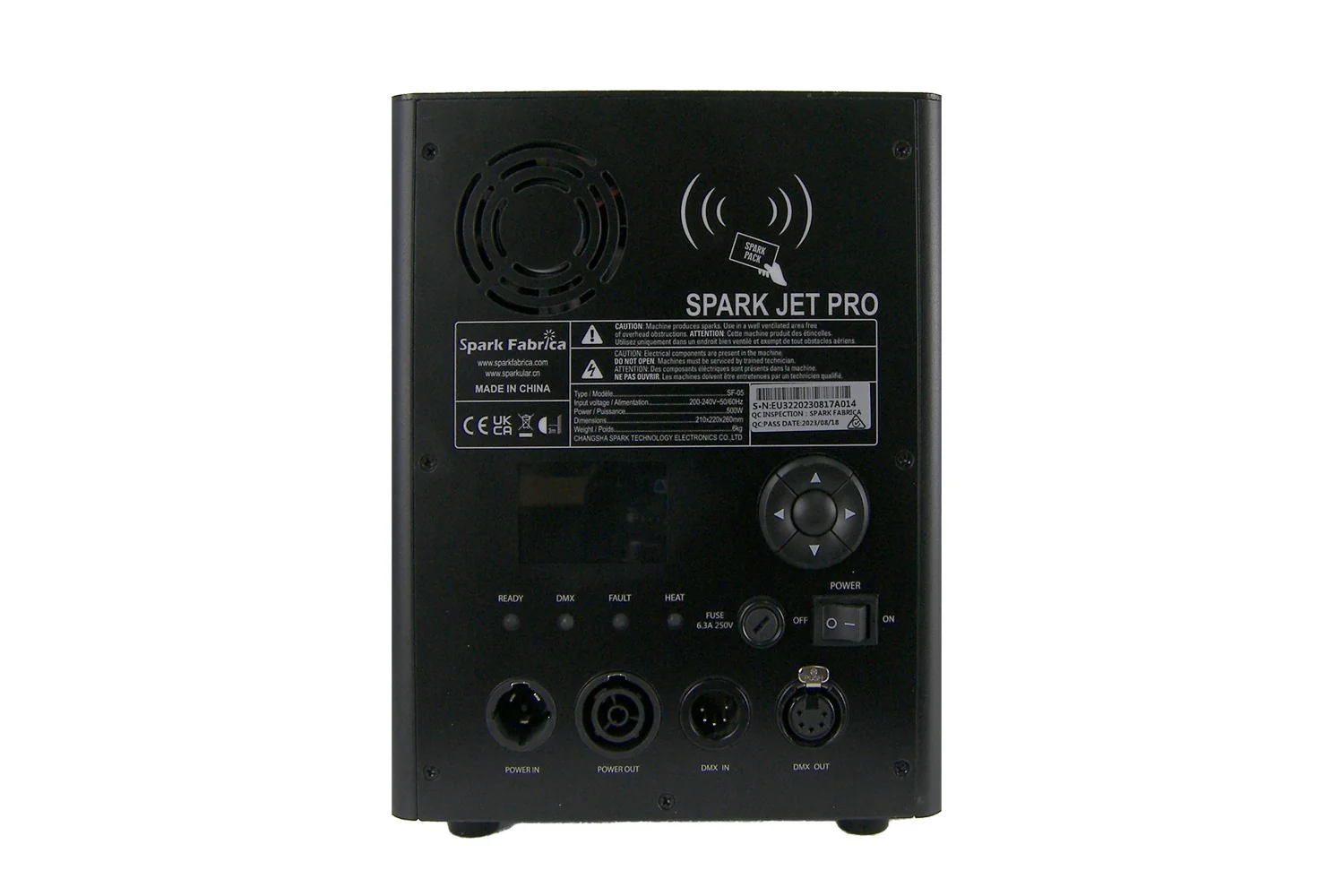

AC Power
- Input Voltage & Frequency: 240V 50HZ
- Power Consumption: 600W
- Power Input Connector: SEETRONIC
- Power Output Connector: SEETRONIC
- DMX Signal Interface: 5 PIN
Heating
- Heat Up Time: < 5 Minutes
Hopper
- Powder Tank Capacity: 150g
Technical Parameters
- Linear Adjustable Density: 30 – 100%
- Adjustable Height: 1.5 – 5m
- Height Level: 1-10 Level
- Powder Consumption (100% Output) 20 – 25g per minute
- Maximum Single Continuous Duration: 30 seconds
Control
- Control Protocol: DMX-512
- RDM
- CAN
- SMPTE: Touch screen console support
Accessory
- Power Plug: SEETRONIC (1.6 Metres)

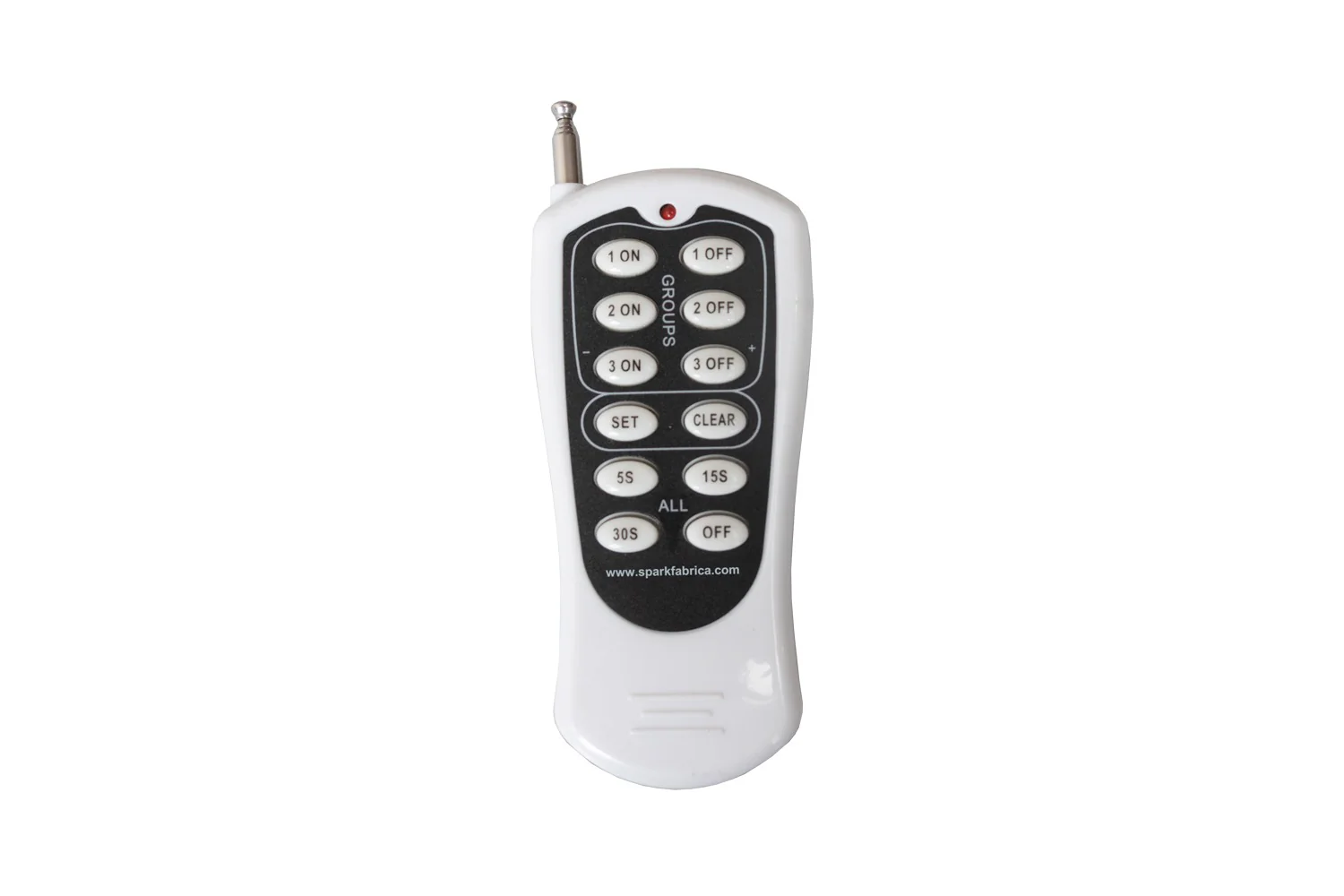

- Remote Controller: 12 button RF Remote (works on 433MHz frequency)
- Bottom Mounting Screw
Certification
- CE
- ROHS
Weight
- Net Weight: 8 Kg
- Gross Weight: 10 Kg
Dimensions
- Machine Dimension: 215 x 213 x 257 mm
- Packing Dimension: 270 x 250 x 330 mm
Granule
- Spark Fabrica Granule: 200 Grams or 50 Grams
- For more information please see the Granules Safety Data Sheet.
