Description

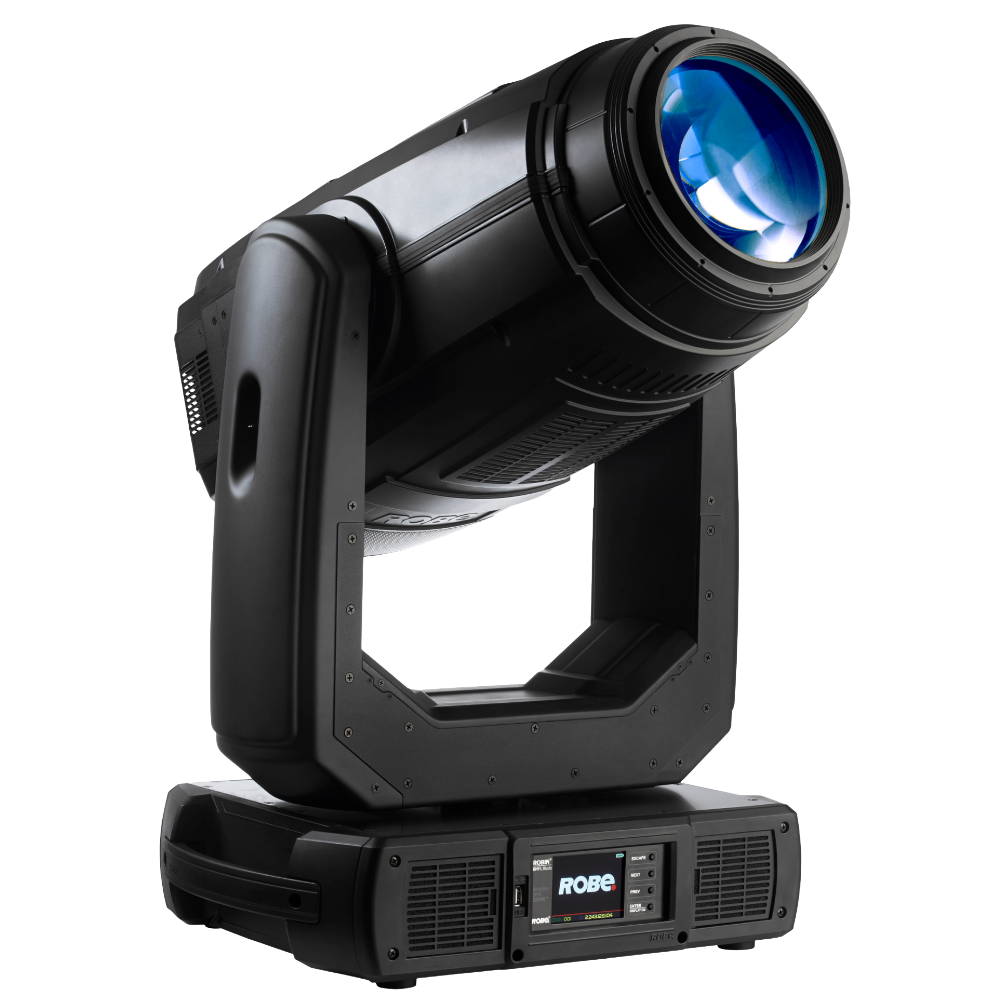

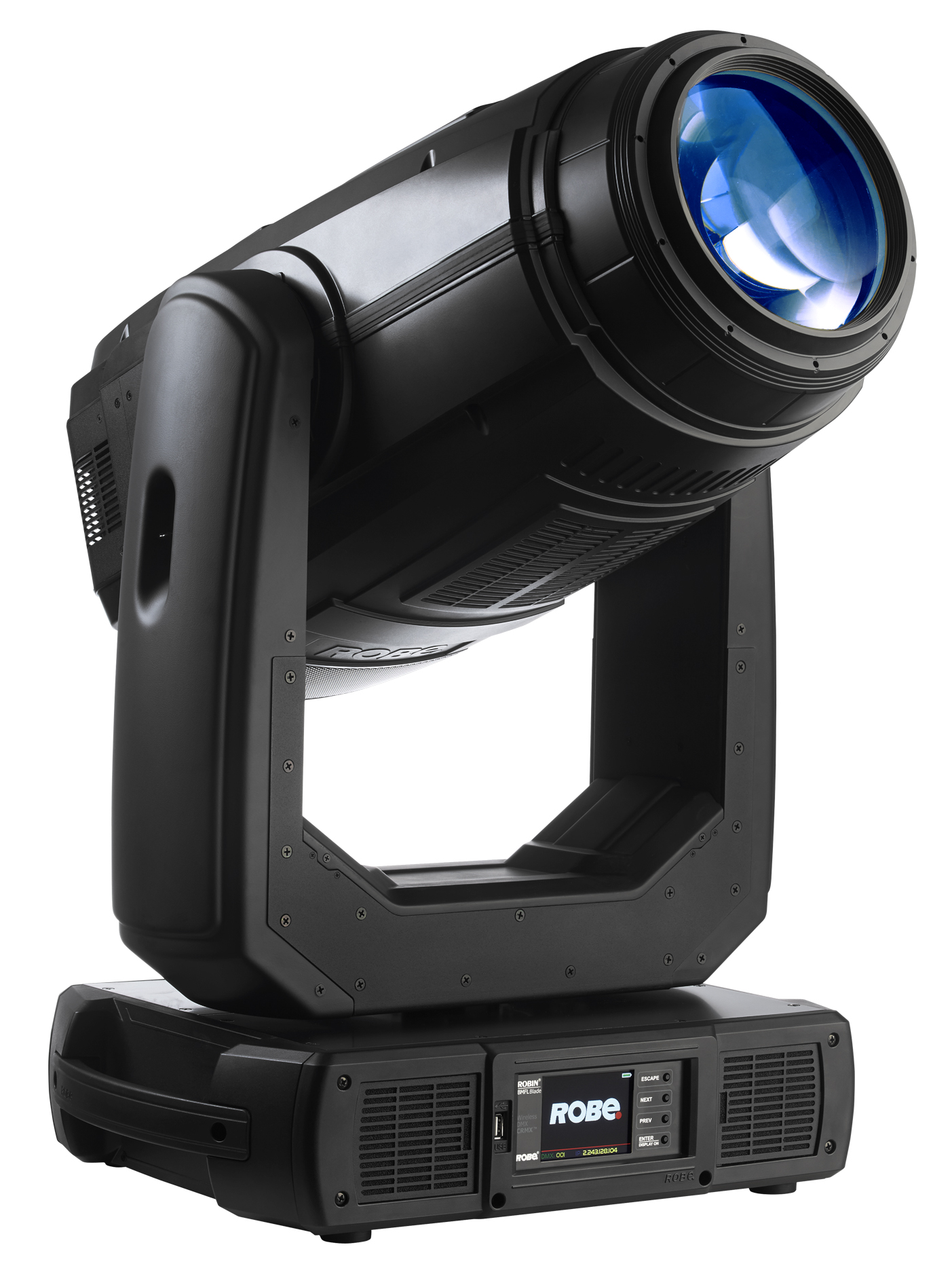

The BMFL™ – Bright Multi-Functional Luminaire – much anticipated new lighting fixture from Robe, brings a real game changer in the world of moving lights.
The BMFL Spot™ has a custom light source designed for Robe and produces a staggering powerful 250 000 lux at 5 metres – no other product currently on the market can equal this output! Despite its power and comprehensive feature set, it weighs just 36 Kgs… and has a compact body profile.
The lamp produces light at a CRI of 92+, this combined with a refined optical system, 5–55 degree zoom, results in a crisp, high quality fat beam that is truly homogenised and without a hotspot. There are also two colour wheels which include filters that can be utilised to adjust colour temperature and improve the CRI of the white output in aging lamps. There are two rotating gobo wheels – each with six slot&lock gobo positions. There are also two Rotating Prisms. The Dual Graphic Wheels both focus within the same focal plane and the rotation and movement can be individually controlled and varied… to create ultra-cool, infinitely subtle special effects. The frost and dimming functions provide further effects.
Three grades of Frost are available and the dimmer is exceptionally smooth with no distortion, so the full beam width is visible right up to the point at which it disappears. The strobe effect is authentic with up to 10 flashes per second!
Aimed at long-throw applications, the newly patented Robe EMS™ (Electronic Motion Stabiliser) technology, enables the BMFL™ to absorb vibrations from audio outputs, truss movement, sprung or suspended floors, etc. The BMFL™ is a very powerful, feature packed luminaire that will provide a real signature light source for any project.
Source
Lamp: Compact short-arc metal halide lamp
Base: PGJX28
Approved model: OSRAM Lok-it! HTI 1700/PS
Lifetime: 750 hours @ 1700 W / 1500 W / Quiet mode
CRI: 92+
Colour Temperature: 6.000 K
Control: Automatic and remote on/off
Ballast: Electronic
Optical system
Robe’s proprietary optical design
High – efficiency zoom optical system, ratio 11:1
Zoom range: 5°–55°
Output Lens diameter: 160 mm
Dichroic glass reflector for maximising the light efficiency
Fixture total lumen output:
-
40.000 lm @ 1700 W
-
36.500 lm @ 1500 W
-
32.000 lm @ 1200 W (Quiet mode)
Illuminance: 250.000 lx @ 5 m
Dynamic Effects and Features
Cyan: 0 – 100 %
Magenta: 0 – 100 %
Yellow: 0 – 100 %
Variable CTO: 2.700 – 6.000 K
Colour wheel 1 with 6 fixed dichroic colours: deep red, deep blue, orange, green, magenta, congo blue + white
Colour wheel 2 with 6 replaceable “SLOT&LOCK” dichroic colours: pink, lavender, laser green, 9000 K CTB, minus half and minus green + white
Rotating Gobo wheel 1:6 rotating, indexable, replaceable “SLOT&LOCK” glass gobos + open
Rotating Gobo wheel 2:6 rotating, indexable, replaceable “SLOT&LOCK” glass gobos + open
Dual Graphic Wheel with two animation discs, individual control of rotation of each disc
Prism 1: 6 facet linear
Prism 2: 6 facet circular
Iris: Motorized, stepless, pulse effects up to 3 Hz
Frost: variable Light, Medium and Heavy Frosts
Motorized zoom and focus
Shutter: Separate dual blade system, Variable strobe effect up to 10 Hz, full black out
Dimmer: Optimized dual blade system for exceptional smooth dimming
Control and programming
Setting & Addressing: ROBE Navigation System 2 (RNS2)
Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding
Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
REAP™ – Robe Ethernet Access Portal
Wireless CRMX™ technology from Lumen Radio
DMX Protocol modes: 2
Control channels: 41, 33
Pan/Tilt resolution: 16 bit
CMY & CTO: 8 bit
Colour wheel positioning: 8 or 16 bit
Rotating Gobo Wheel positioning: 8 or 16 bit
Gobo indexing & rotation: 8 or 16 bit
Dual Graphic Wheel: 8 bit
Iris: 8 or 16 bit
Frost: 8 bit
Zoom: 8 or 16 bit
Focus: 8 or 16 bit
Dimmer: 8 or 16 bit
Movement
Pan movement: 540°
Tilt movement: 270°
Movement control: Standard and Speed
Controllable speed of Pan/Tilt movement
EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patented)
Automatic Pan/Tilt position correction
Rotating gobos
12x fully rotating, indexable glass gobos on two wheels
Outside diameter: 30.8 mm
Image diameter: 25.0 mm
Thickness: 1.1 mm
Max. thickness: 3.5 mm
High temperature borofloat or better glass
Effect wheel
Dual Graphic Wheel
Material: Aluminium
Diameter: 96 mm
Can be used alone or in combination with rotating gobos
Rotating in both directions at variable speed
Thermal specification
Maximum ambient temperature: 45 °C (113 °F)
Maximum surface temperature: 100 °C (212 °F)
Minimum operating temperature: -5°C (23°F)
Total heat dissipation: max. 5800 BTU/h (calculated)
Electrical specification and connections
Power supply: Electronic auto-ranging
Input voltage range: 200–240 V, 50/60 Hz
Power consumption: 2000 W at 230 V / 50 Hz
Power in connector: Neutrik powerCON
DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
Ethernet port in: RJ45
Approvals
CE Compliant
cETLus Compliant
Mechanical specification
Height: 813 mm (32″) – head in vertical position
Width: 483 mm (19″)
Depth: 335 mm (13.2″)
Weight: 36 kg (79.4 lbs)
Ingress protection rating: IP20
Rigging
Mounting positions: 0°, 32° and 90°
Universal operating position
Mounting points: 5 pairs of 1/4-turn locking points
2x Omega adaptors with 1/4-turn quick locks
Safety cable attachment point
Pan and Tilt transport locks
Included items
User Manual
Omega Adaptor CL-regular 2 pcs
Power cord including powerCON In connector
Optional accessories
Lamp Osram Lok-it HTI 1700/PS: 14080049
FS BMFL/ESPRITE/FORTE/T2 Handles – 2 pcs in box: 10980233
BMFL Side Handle: 10980396
Doughty Trigger Clamp: 17030386
Frost 0.5° (exchange) assembled: 10980594
Frost 1° (exchange) assembled: 10980296
Frost 5° (exchange) assembled: 10980595
Frost 10° (exchange) assembled: 10980596
Frost 20° (exchange) assembled: 10980597
Frost 30° (exchange) assembled: 10980598
Safety wire 50 kg: 99011957
Single Top Loader Case: 10120163-02
Dual Top Loader Case: 10120164-02
Foam Shell: 20020218-01
