Description

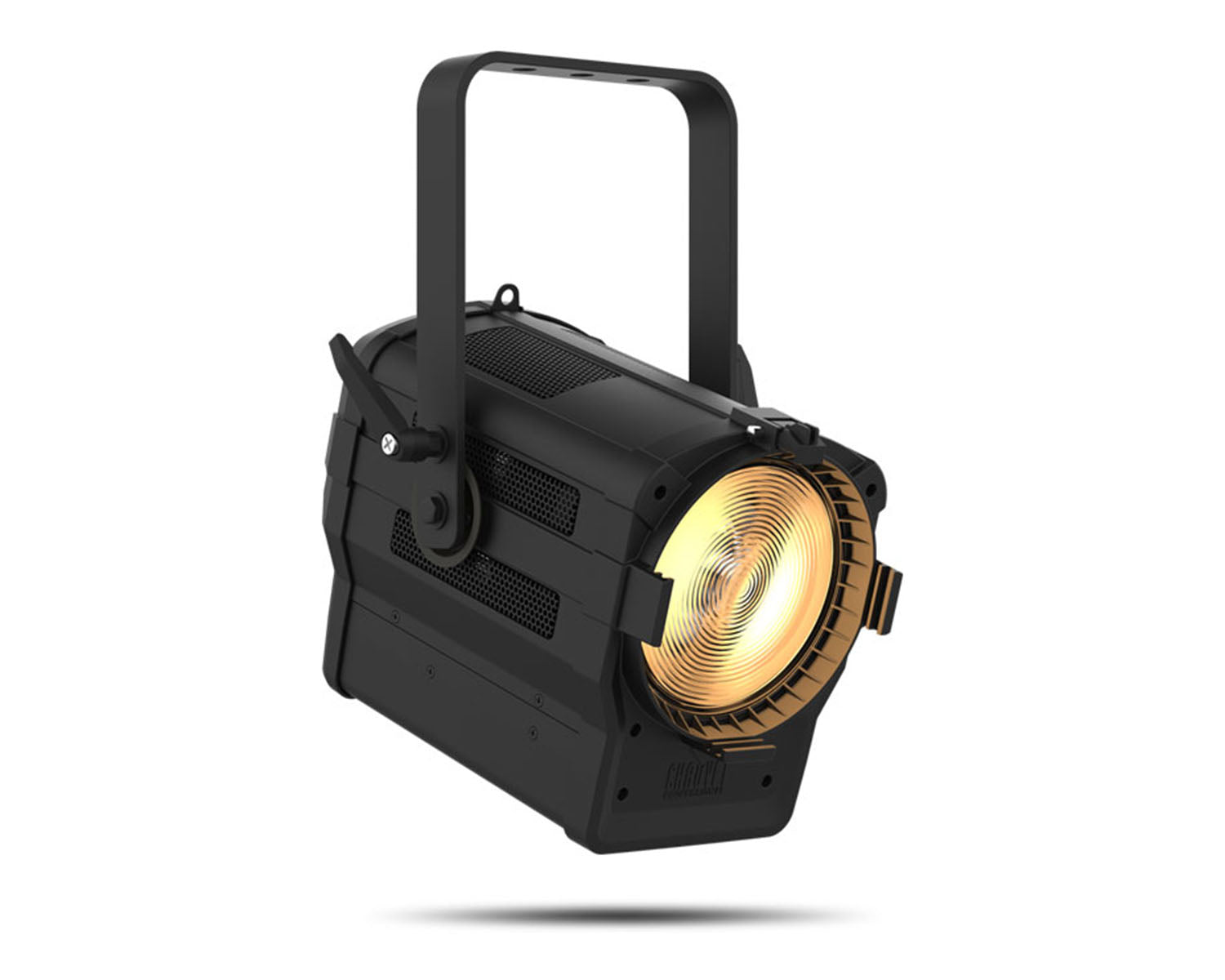

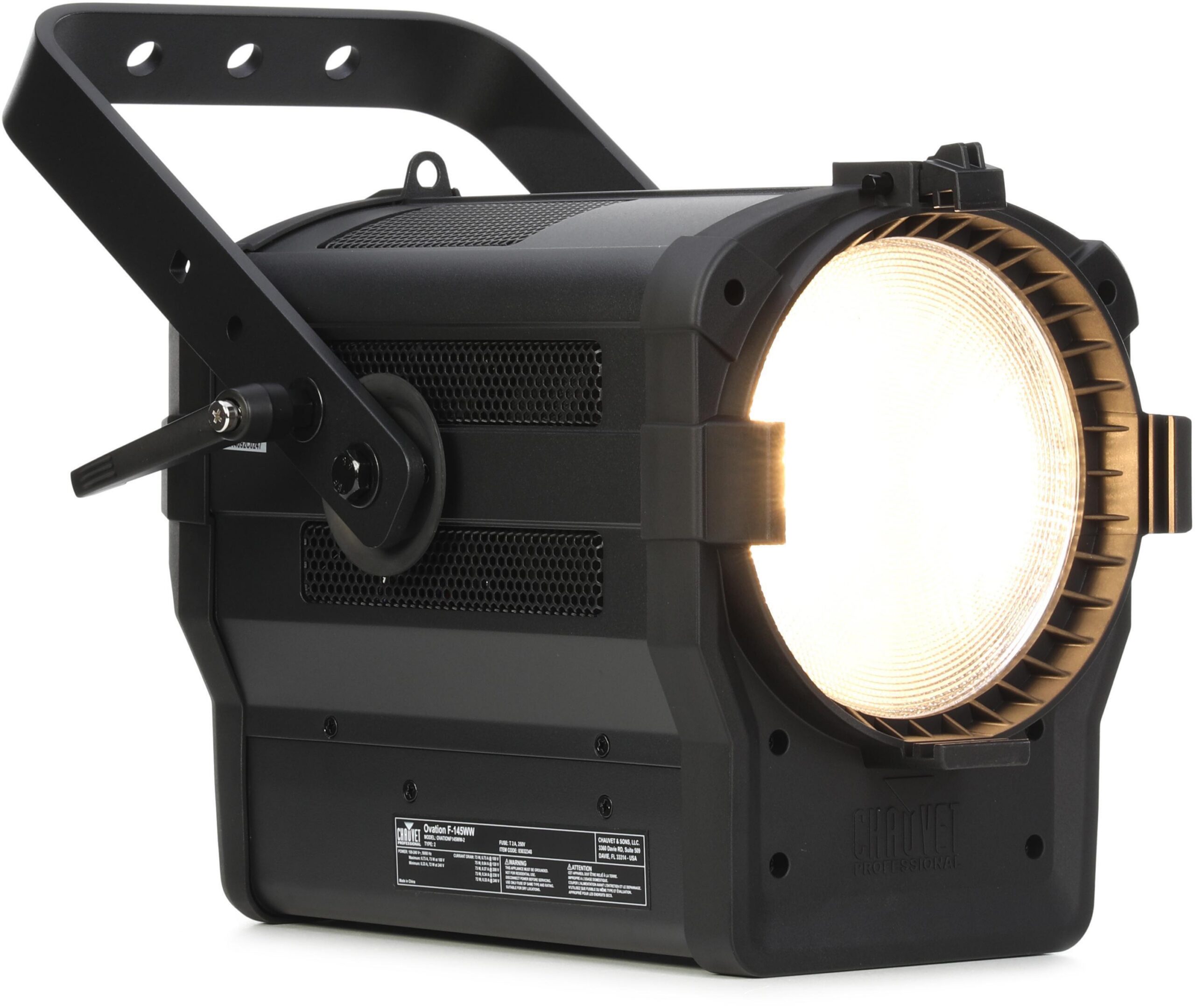

Ovation F-145WW delivers a beautifully soft and flat field of warm white light with high CRI and a motorized zoom range of 16° to 65°, making it a versatile LED replacement for aging incandescent six-inch Fresnels. A virtually quiet operation and smooth 16-bit dimming control make it a great choice for theatrical and/or studio applications.
Features
Powerful Fresnel Output
This warm white Fresnel delivers a powerful output comparable to a traditional 6-inch, 650-watt Fresnel.
Even Light Distribution
Produces a consistently soft and even field of light for flawless illumination.
High Resolution Dimming
Achieve exceptionally smooth fades with high-resolution 16-bit dimming control.
Silent Operation
Its virtually silent operation makes it ideal for use in any noise-sensitive situation.
Motorized Zoom
Easily adjust the beam angle from a narrow 16° to a wide 65° using the motorized zoom, controllable manually or via DMX.
Specifications
Optical
-
Light Source
1 LED (WW) 70 W, (3.6 A), 50,000 hours life expectancy
-
Color Temperature (at full)
3096 K
-
CRI
97
-
Beam Angle
16° to 48°
-
Field Angle
25° to 65°
-
Zoom Range
16° to 65°
-
Lumens (25°)
2,787
-
Lumens (65°)
4,266
-
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Zoom
Motorized
-
Strobe Rate
0 to 30 Hz
-
Dim Modes
4
Construction/Physical
-
Dimensions
11.69 x 11.22 x 15.03 in (297 x 285 x 382 mm)
-
Weight
11 lb (5 kg)
-
Exterior Color
Black
-
Housing Material
Aluminum alloy, Aluminum die-cast
-
Accessory Holder/Gel Frame Size
6.25 in (158.75 mm)
Connections
-
Power Connection
Edison (local) plug to Seetronic Powerkon IP65
-
Power Input
Seetronic Powerkon IP65
-
Power Output
Seetronic Powerkon IP65
-
Data Connectors
3- and 5-pin XLR
-
Cable Length (power)
5 ft (1.5 m)
Control
-
Protocol(s)
DMX, RDM
-
DMX Channels
1, 2, 2 or 5
-
Modes/Personalities
4 personalities (1, 2, 2, 5)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking
18 units @ 120 V; 32 units @ 208 V; 35 units @ 230 V
-
Power and Current
75 W, 0.635 A @ 120 V, 60 Hz
-
Power and Current
73 W, 0.373 A @ 208 V, 60 Hz
-
Power and Current
73 W, 0.337 A @ 230 V, 60 Hz
Certifications/Qualifications
-
Certifications
CE, MET, FCC, UKCA
-
IP Rating
IP20, dry location
-
Temperature (Ambient)
-4 °F to 113 °F (-20 °C to 45 °C)
Compatible Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- TRUE1 Style Power Extension cables
- 3-pin or 5-pin DMX Cables
- Color Blending Filters: DF60X1D, DF20D
- Ovation F6.25” Barndoor
