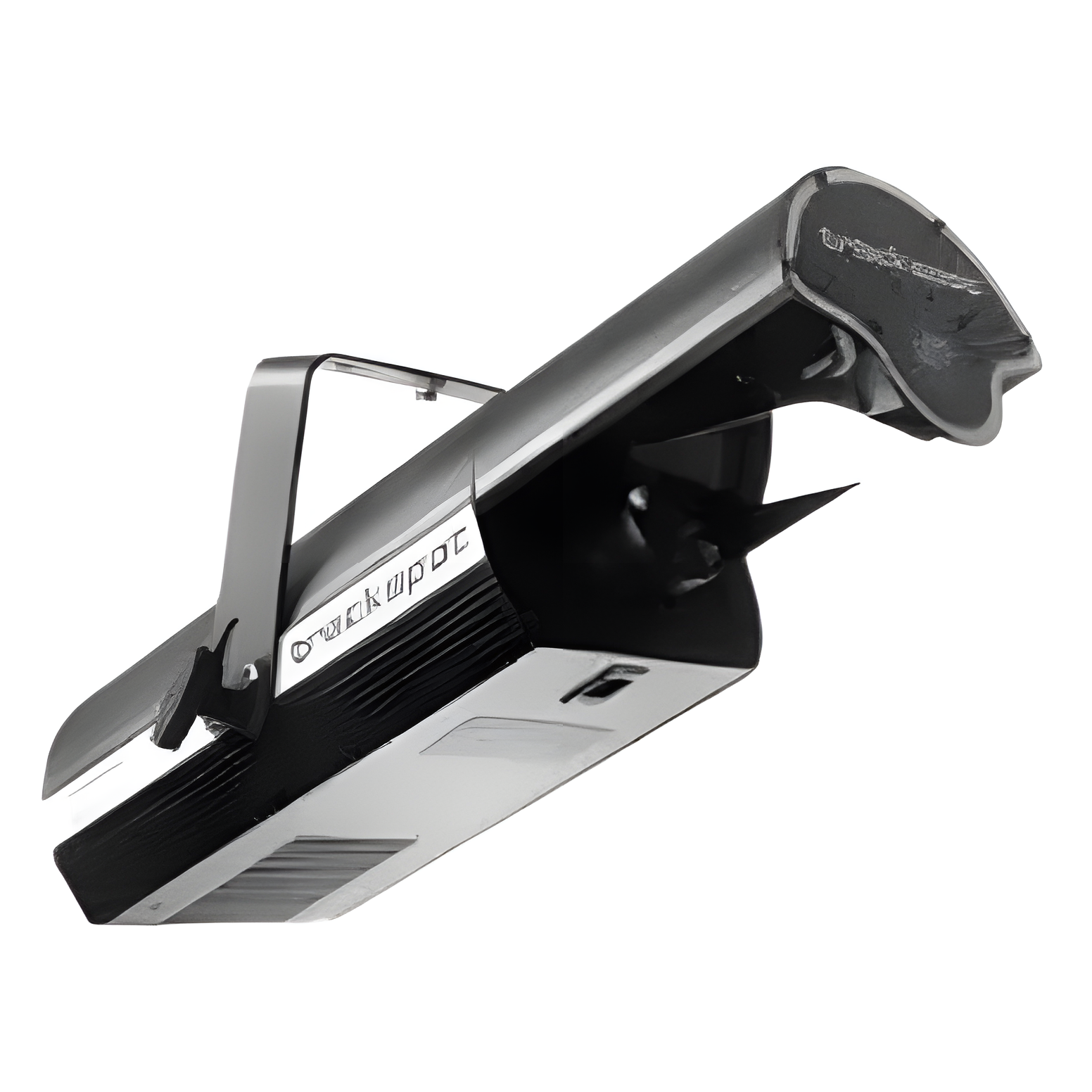

LWR Trackspot

Description

Trackspot® Features
Optics & Effects

Color wheel with eight dichroic colors, plus color corrector and open (white)
Gobo wheel with eight unique patterns, including two multicolour dichroic gobos
Replaceable custom gobo position
32 pre-programmed effects sequences
Variable-speed strobe
100% electronic dimming
Control & Operation

Stand-alone operation
Standard analogue control
LWR protocol
DMX-512 protocol
Built-in condenser microphone for bass-triggered effects
Remote system enable/disable via low-voltage control
Pan and tilt invert options
Movement & Accuracy

Precision stepper motors for pan and tilt
Optical sensors on color and gobo wheels to prevent positioning errors
Lamp & Power

QT 8500 lamp designed specifically for Trackspot®

Approx. 300-hour average lamp life
High output and stable color temperature
Easy, tool-free lamp replacement with no optimisation required
Multitap power transformer with over-voltage compensation
External voltage selector: 100V, 120V, 140V, 200V, 220V, or 240VAC (50/60 Hz)
Low power consumption:

3.1 A @ 120V
1.55 A @ 240V
Protection & Compliance

Thermal overload protection
Break-resistant mirror
