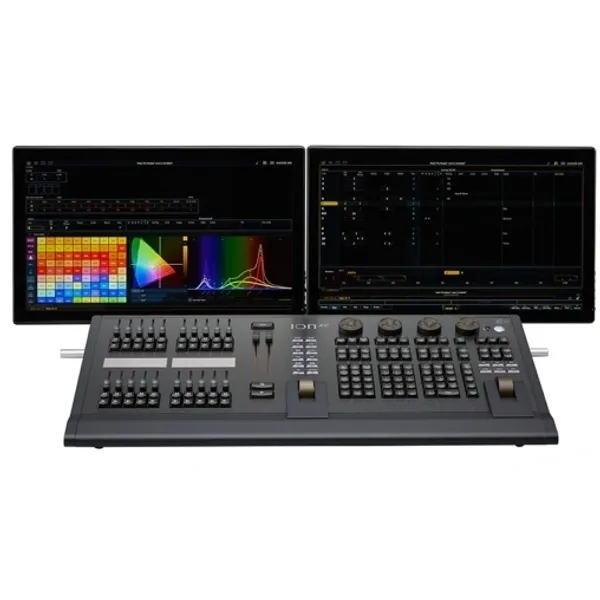

ETC ION XE 20 2K

From small auditoriums and houses of worship to experimental venues and touring shows, Ion-class lighting control consoles are the compact workhorses of the Eos Family. With the same backlit keyboard layout and full-featured software as their Gio- and Apex-class siblings – and the option of hands-on fader control – Ion Xe consoles give you the full Eos experience in a budget-friendly and portable package.


Hardware & Interfaces

• Supports two external display port monitors (1920×1080 minimum, 3840×2160 maximum), with optional single-touch or multi-touch screen control and DDC/CI support
• 20 45mm standard faders, 100 10-fader pages configurable as channels, submasters, palettes/presets, timing and effect rate/speed playback control
• Two internal monochromatic LCD displays for fader content
• Main Playback with two 100mm standard faders
• Four encoders for non-intensity parameter control
• Dedicated high-resolution intensity level wheel
• Backlit Eos keypad
• Included USB keyboard
• Solid-state hard drive
• IEC power input (100-240 VAC at 50/60Hz), fused mains power switch, locking regionalized power cable included
• Two individually configurable Gigabit Ethernet ports, RJ45 connectors
• One 802.11ac WiFi Ethernet adapter (to be enabled with future software)
• Bluetooth 5.1 for connecting input accessories (to be enabled with future software)
• sACN and Art-Net network output protocols
• Four DMX-512 / RDM 5-pin XLR ports
• Contact closure triggers via D-Sub connector
• USB 3.1 ports, for flash drives, pointing devices, keyboards (5 USB-A ports, 2 USB-C ports)
• One Littlite XLR port
• One Kensington lock port
• Multiple MIDI and/or SMPTE timecode inputs, MIDI In and Out, Analog/Serial Inputs, OSC transmit/receive, UDP transmit/receive through network interface or Response Gateways
