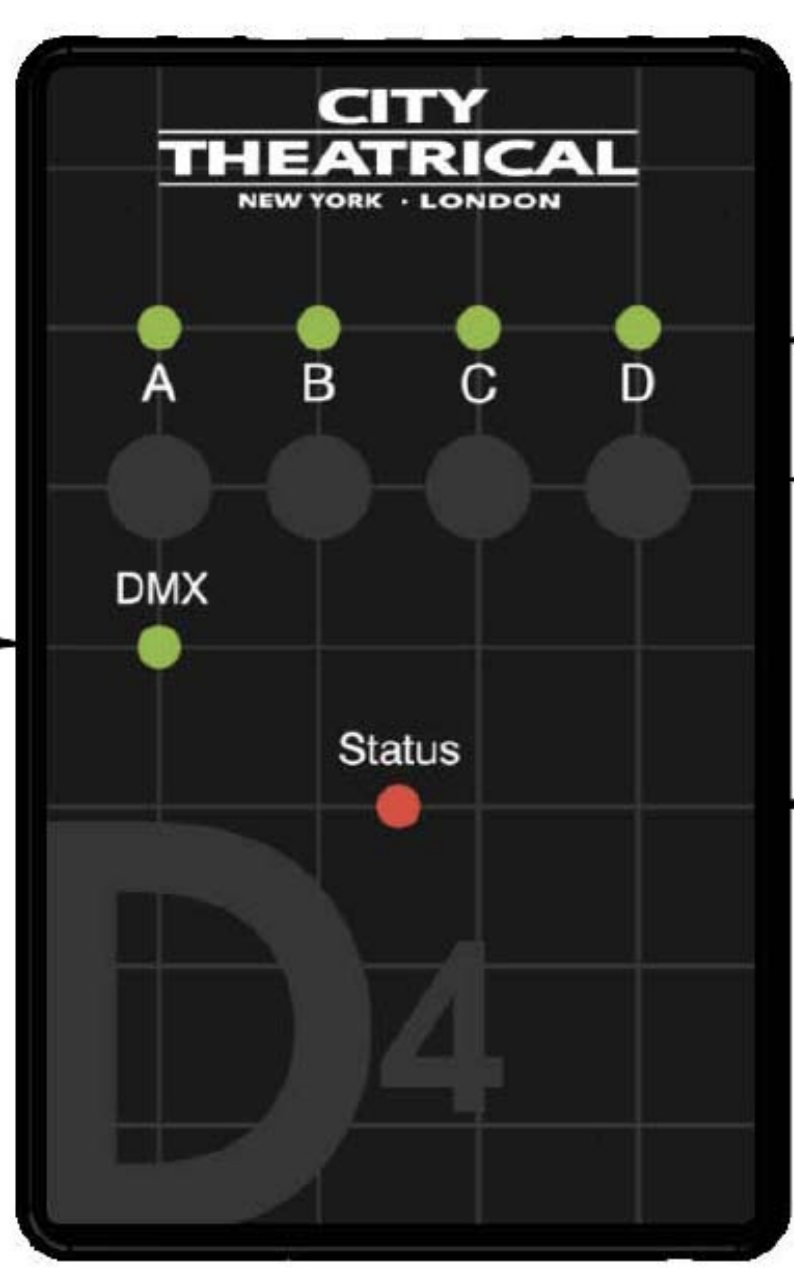

City Theatrical D4 Dimmer
City Theatrical D4 Dimmer
City Theatrical D4 Dimmer

City Theatrical D4 Dimmer

$10.00

Compact and powerful, the City Theatrical D4 Dimmer is ideal for precise lighting control in various applications.

📅 Hire Period

Duration: 1 day (max 180) Hire Total: $10.00 (ex GST)
Daily rate: $10.00

All items in your cart will use these dates.

SKU: 720
Category:

Description

DMX Control Features

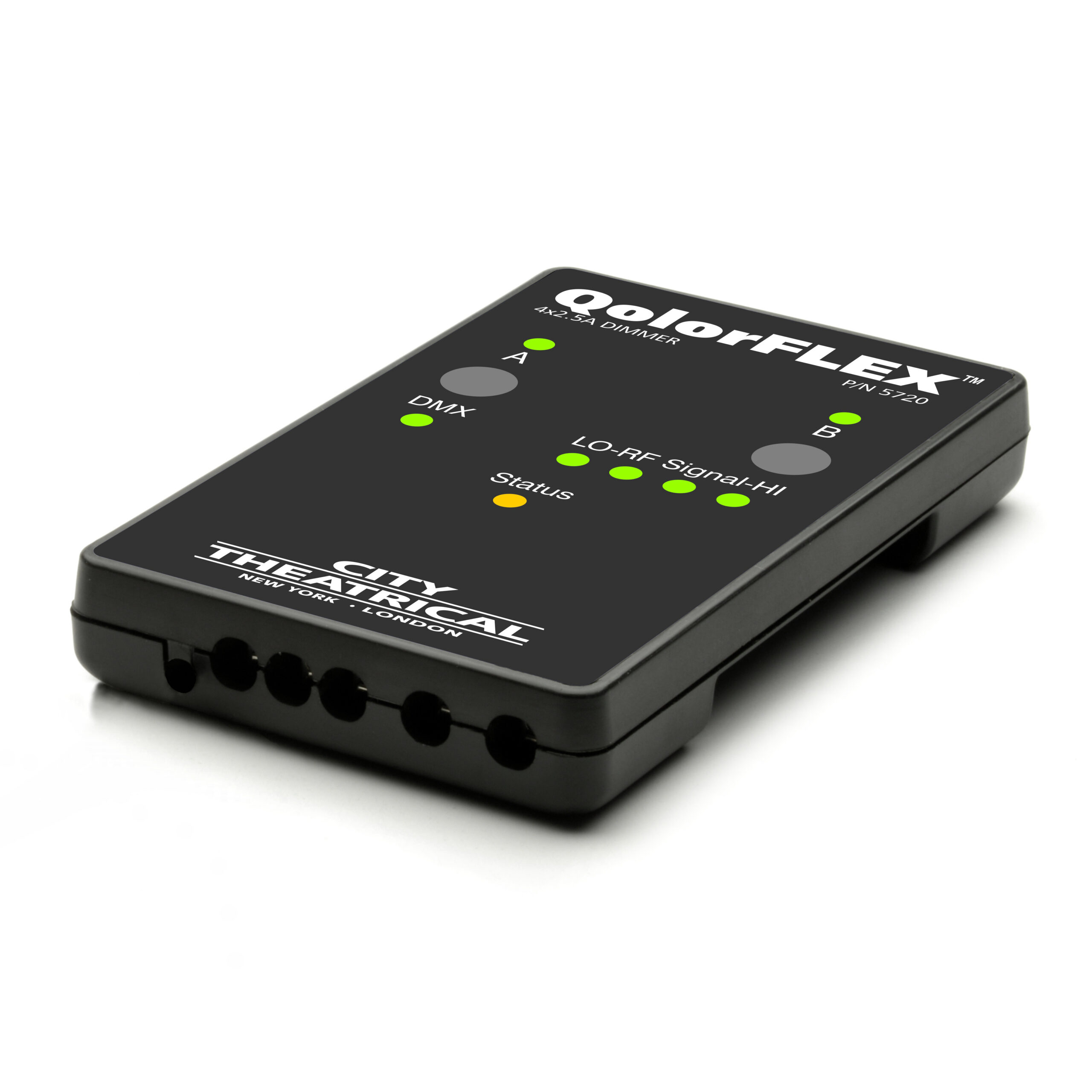

The QolorFLEX® 4×2.5A Dimmer includes:



  • SHoW DMX Neo® 2.4GHz Frequency Hopping Spread Spectrum (FHSS) Radio (Wireless version)

The QolorFLEX 4×2.5A Dimmer (wired DMX versions) include:

  • 3P Screw Terminals for DMX Out



Other Features



All Units Include:



  • Four dimmer output channels
  • Max output per dimmer channel 5A
  • Max total output per device 10A
  • Screw terminal connections for power input and dimmed output
  • Individually protected against over-current
  • Individually protected against over-temperature
  • Individual bump buttons
  • PWM resolution 16-bit
  • Dimming Curves
    • Linear, 60Hz
    • ISL, 60Hz
    • Non-Dim
  • LED Features
    • Five variable LED smoothing rates
    • Four Film and Video Modes
  • Individual DMX addresses
  • Fully RDM enabled



Mechanical

  • NEMA 1 ABS enclosure



Electronic/ Functional Features

  • Bump Buttons
  • DIP Switch, DMX Addressing (9POS)
  • DIP Switch, SHoW ID addressing (8POS)
  • DIP Switch, Curve Selection (4POS)
  • DIP Switch, LED Curve PWM Frequency Selection (4POS)
  • DIP Switch, DMX Termination (wired DMX units only, 1POS)
  • LED indicators:
    • Dimmer pilot lights (one for each channel)
    • Data (data present)
    • RF Signal Strength (4 LEDS) Low to High
    • Status

Compliance

  • ETL Listed

Reviews

There are no reviews yet.

Be the first to review “City Theatrical D4 Dimmer”
