Description

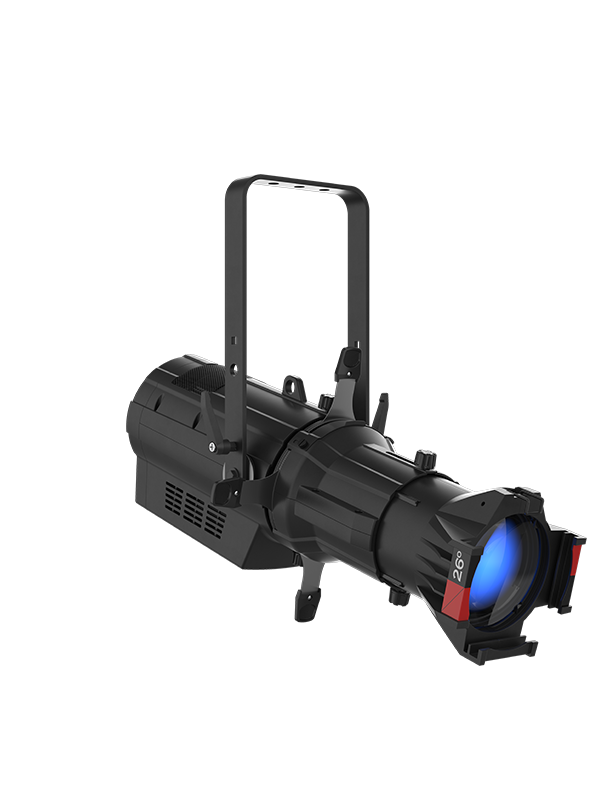

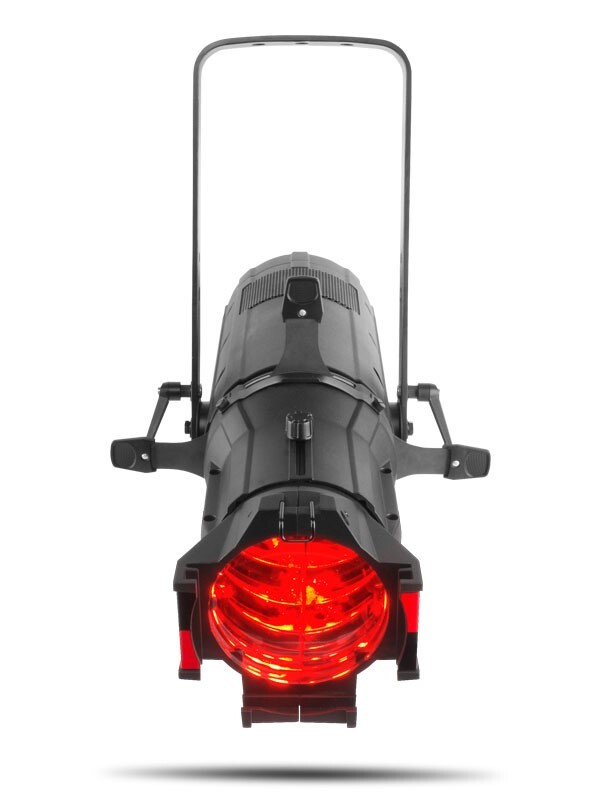

Ovation E-910FC is a high-performance ERS-style fixture with full RGBA-Lime color mixing and Color Temperature presets of 2800 to 6500 K that match the output of a tungsten source to perfection. Control options include full 16-bit dimming (per color and master), selectable PWM, RDM and onboard dimming curve selection. Also accessible is our Virtual Color Wheel which matches popular gel colors.
Features
Full Color RGBAL Engine
Provides a rich spectrum of color in a classic ERS-style fixture for theatre, film, and production.
High Resolution Dimming
Achieve ultra-smooth fades with 16-bit dimming control over the master dimmer and individual colors.
Superior Optics and Color Mixing
Delivers a flat, even field of light with exceptional color mixing for a consistent and high-quality output.
Virtual Color Wheel
Instantly access a range of popular gel colors digitally matched for convenience and speed.
Adjustable Color Temperature
Select from presets ranging from 2800 K to 6500 K, all with high CRI and CQS for accurate color rendering.
Remote Device Management
Utilize RDM for added flexibility in addressing and configuring the fixture from a distance.
Flicker-Free Operation
Adjust the Pulse Width Modulation (PWM) to ensure flicker-free performance on camera.
Silent Operation
Its virtually silent performance is ideal for noise-sensitive studio and theatre applications.
Industry Standard Compatibility
Works seamlessly with your existing inventory of industry-standard lens tubes and accessories.
Specifications
Optical
-
Light Source
91 LEDs (18 red, 18 green, 19 blue, 18 amber, 18 lime green) 3 W, (722 mA), 6031 K, 50,000 hours life expectancy (L70)
-
Color Temperature (range)
2800 to 6500 K
-
Color Temperature (at full)
6031 K
-
CRI (3200 K)
86
-
Barrel Rotation
+/- 27°
-
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Focus
Manual
-
Strobe Rate
0 to 28 Hz
-
Standalone Color Mixing
Yes
-
Color Temperature Presets
Yes
-
Dim Modes
4
-
Built-in Automated Programs
Yes
Construction/Physical
-
Exterior Color
Black or White
Connections
-
Power Connection
Edison (local) plug to Seetronic Powerkon IP65
-
Power Input
Seetronic Powerkon IP65
-
Power Output
Seetronic Powerkon IP65
-
Data Connectors
5-pin XLR
-
Cable Length (power)
5 ft (1.5 m)
-
Software Connection
USB
Control
-
Protocol(s)
DMX, RDM
-
DMX Channels
1, 3, 5, 7, 10, 12, 13, 16 or HSV
-
Modes/Personalities
8 personalities (1, 3, 5, 7, 10, 12, 13, 16 or HSV)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking
5 units @ 100 V; 6 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V; 13 units @ 240 V
-
Power and Current
220 W, 2.17 A @ 100 V, 60 Hz
-
Power and Current
215 W, 1.79 A @ 120 V, 60 Hz
-
Power and Current
214 W, 1.03 A @ 208 V, 60 Hz
-
Power and Current
216 W, .94 A @ 230 V, 50 Hz
-
Power and Current
217 W, .91 A @ 240 V, 50 Hz
Certifications/Qualifications
-
Certifications
CE, MET, FCC, UKCA
-
IP Rating
IP20, dry location
Required Accessories
- Lens Tube: 19°, 26°, 36°, 50°
Compatible Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- TRUE1 Style Power Extension cables
- 3-pin or 5-pin DMX Cables
- Color Blending Filters: DF60X1D, DF20D
- Ovation Zoom Lenses: OHDZOOM1530, OHDZOOM2550
- Gobo Holder: Standard “S4” size Sandwich Style or Iris Slot Style gobo holder for “A” or “B” size gobos
What’s Included
- OVATION E-910FC
- Seetronic Powerkon IP65 power cord
