AT A GLANCE

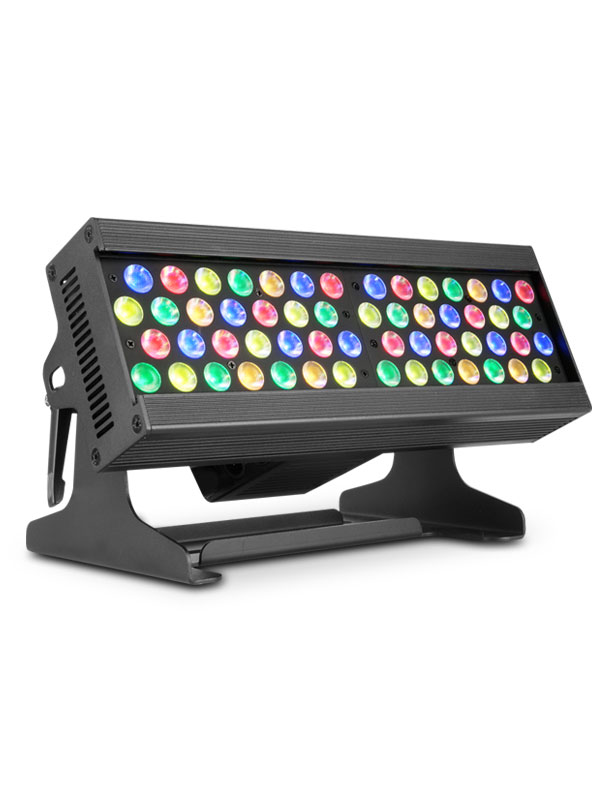

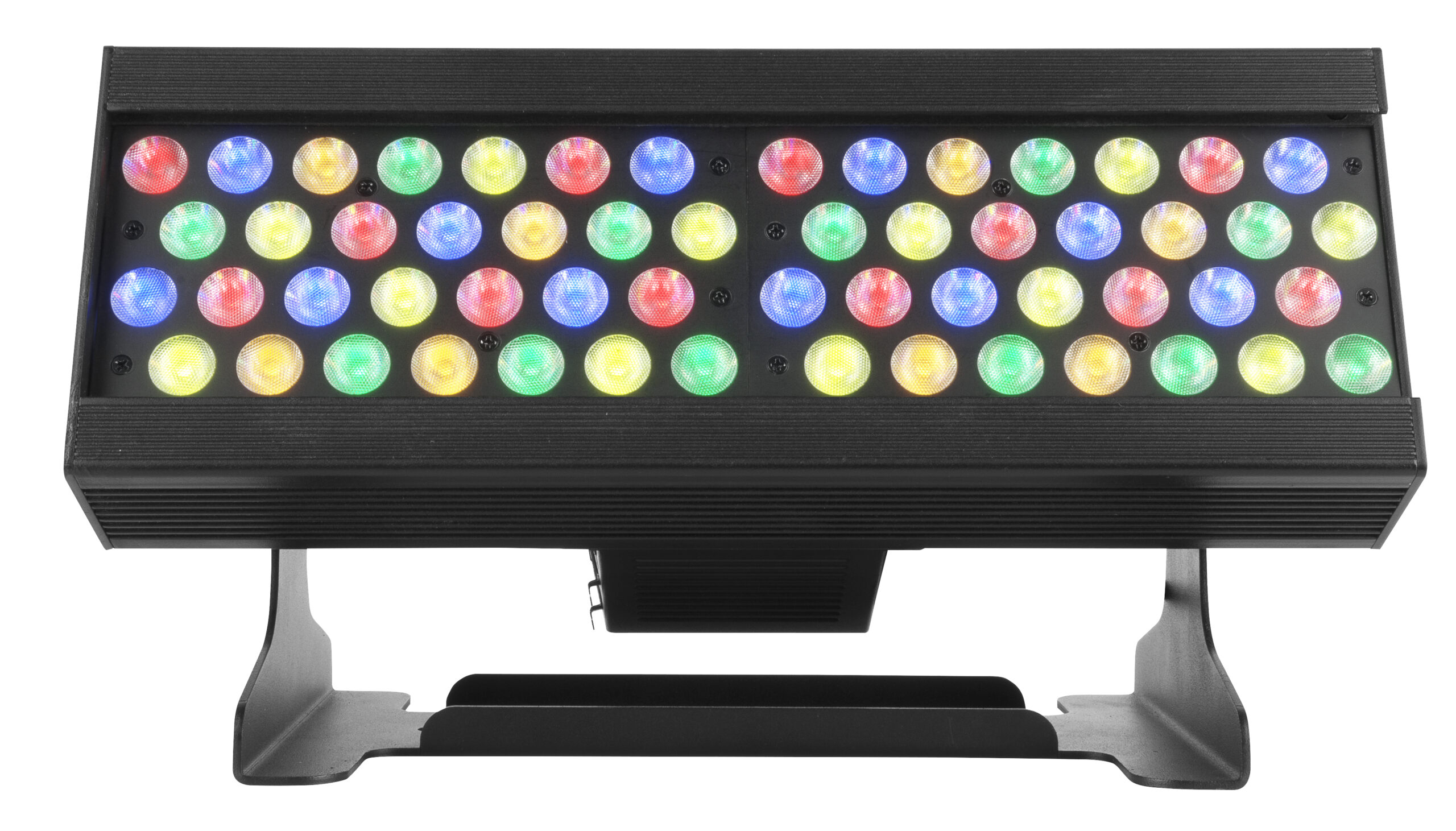

• Full Color LED (RGBAL) batten fixture for theatre, film and production
• Theatre-ready with 16-bit dimming of master dimmer and individual colors
• Multiple control personalities with one or two sections of control
• Included holographic filter locks in place for ultra-smooth color mixing with a more elliptical wash pattern
• Virtual Color wheel with color matched to popular gel colors
• Art-Net™, sACN, 3- and 5-pin DMX and RDM (Remote Device Management) for added control flexibility
• Neutrik® powerCON® and Amphenol etherCON® compatible connections for power and data linking
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Nearly silent operation for use in studio and theatre applications

TECHNICAL SPECIFICATIONS

OPTICAL

• Light Source: 56 LEDs (12 red, 12 green, 12 blue, 8 amber, 12 lime) 3 W, (650 mA), 50,000 hours life expectancy
• Color Temperature (range): 2800 K to 10000 K
• CRI (3200 K): 80
• Installed Optics: 20°
• Beam Angle (horizontal): 19°
• Beam Angle (vertical): 20°
• Beam Angle (horizontal w/filter): 36°
• Beam Angle (vertical w/filter): 20°
• Field Angle (horizontal): 37°
• Field Angle (vertical): 37°
• Field Angle (horizontal w/filter): 66°
• Field Angle (vertical w/filter): 40°
• Lumens: 6,523
• Illuminance: 1,637 lux @ 5 m
• Illuminance (w/filter): 470° @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

• Dimensions: 13.9 x 7.48 x 8.14 in (355 x 190 x 207 mm)
• Weight: 11.6 lb (5.3 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
• Accessory Holder/Gel Frame Size: 13.86 x 3.66 in (352 x 93 mm)

CONNECTIONS

• Power Connection: Edison (Local) plug to Neutrik® powerCON®
• Power Input: Neutrik® powerCON®
• Power Output: Neutrik® powerCON®
• Data Connectors: 3- and 5-pin XLR, Amphenol etherCON® Compatible
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Protocol(s): Art-Net™, DMX, RDM, sACN
• DMX Channels: 1 Cell: 3, 4, 5, 8, 9, 10, 10, 17 – 2 Cell: 6, 8, 10, 15, 17, 19, 20, 31
• Art-Net™ Channels: 1 Cell: 3, 4, 5, 8, 9, 10, 10, 17 – 2 Cell: 6, 8, 10, 15, 17, 19, 20, 31
• Modes/Personalities: 16 personalities

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 13 units @ 120 V; 23 units @ 208 V; 26 units @ 230 V
• Power and Current: 117 W, .995 A @ 120 V, 60 Hz
• Power and Current: 119 W, 0.569 A @ 208 V, 60 Hz
• Power and Current: 119 W, 0.519 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC
• IP Rating: IP20, dry location

WHAT’S INCLUDED

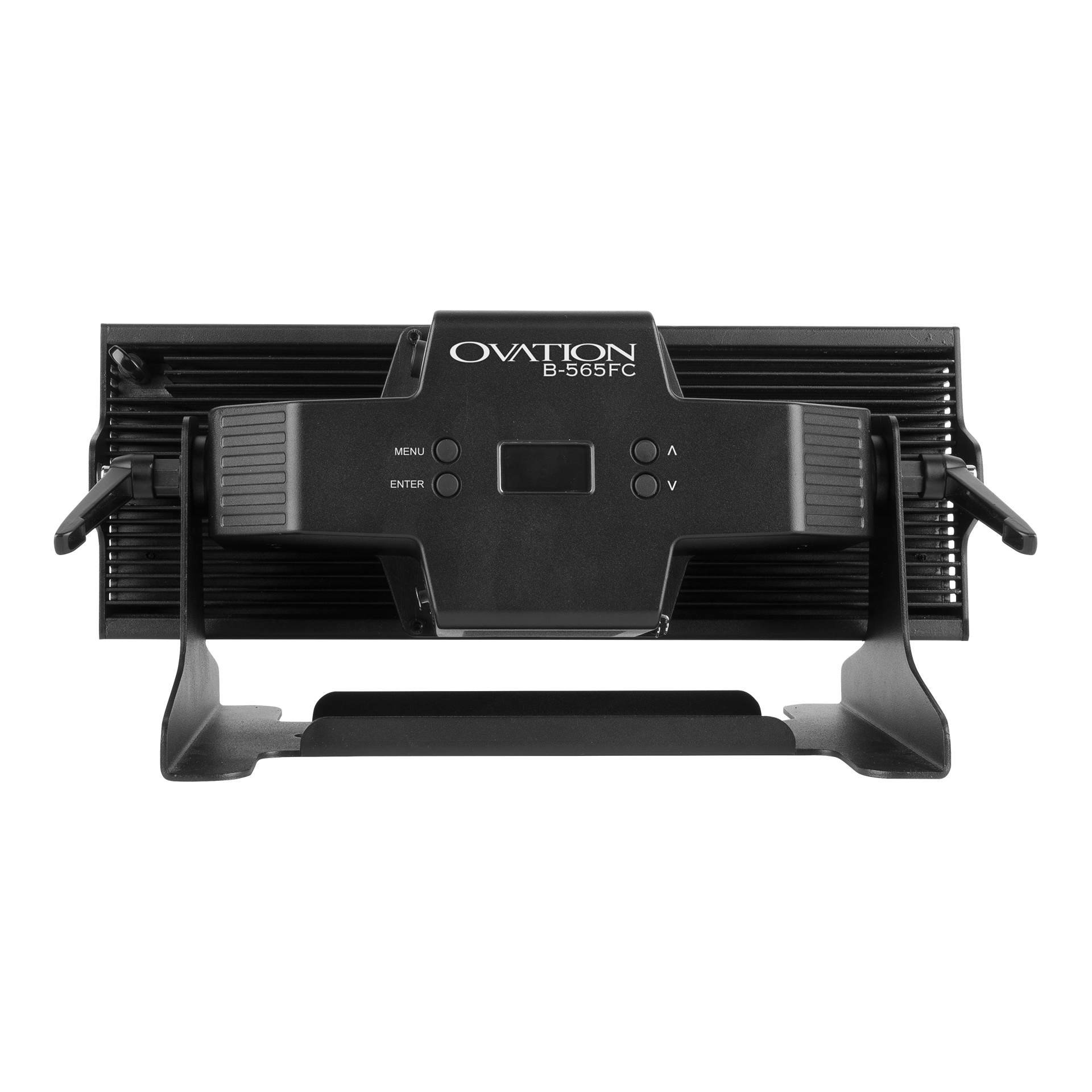

• OVATION B-565FC
• Neutrik® powerCON® power cord
• Wall Washing Filter

OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik® powerCON® cables
• Neutrik® etherCON® cables
• DMX Cables
• Flight Cases

• Power Connection: Edison (Local) plug to Seetronic Powercon IP65
• Power Input: Seetronic Powercon IP65
• Power Output: Seetronic Powercon IP65
• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: Art-Net, sACN, DMX, RDM, Klingnet
• DMX Channels: 20ch, 53ch, 101ch, 155ch, 179ch
• Art-Net Channels: 20ch, 53ch, 101ch, 155ch, 179ch
• sACN Channels: 20ch, 53ch, 101ch, 155ch, 179ch
• Modes/Personalities: 5 personalities( 20ch, 53ch, 101ch, 155ch, 179ch)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 1 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V
• Power and Current: 790 W, 6.70 A @ 120 V, 60 Hz
• Power and Current: 772 W, 3.80 A @ 208 V, 60 Hz
• Power and Current: 768 W, 3.44 A @ 230 V, 50 Hz
• Fuse: F12 A, 250 V

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, UKCA, FCC
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

WHAT’S INCLUDED

• COLORADO PXL Curve 12
• (2) Omega brackets
• Seetronic Powercon IP65 power cord

OPTIONAL ACCESSORIES

• Professional Clamps
• Neutrik TRUE1 power linking cables
• 5-pin DMX Cables
• Ethercon Cables
