Description
Looks like a traditional bulb, works like a professional luminaire. Designed to meet filmmakers’ requirements for practicals on camera and to discover endless creative possibilities without disrupting event planners’ workflow. From delivering perfect skin tones and the same controls as any other wireless DMX fixture to intimate gatherings to grand events, LunaBulb offers intuitive control via your smart device, remote, or console. Let your creativity shine wherever there’s a lamp socket.
Versatile Design: Combines the appearance of a traditional bulb with the functionality of a professional luminaire, ideal for filmmakers and event planners.
Flexible Control: Offers intuitive wireless DMX control via smart devices, remotes, or consoles, suitable for various settings from intimate gatherings to grand events.

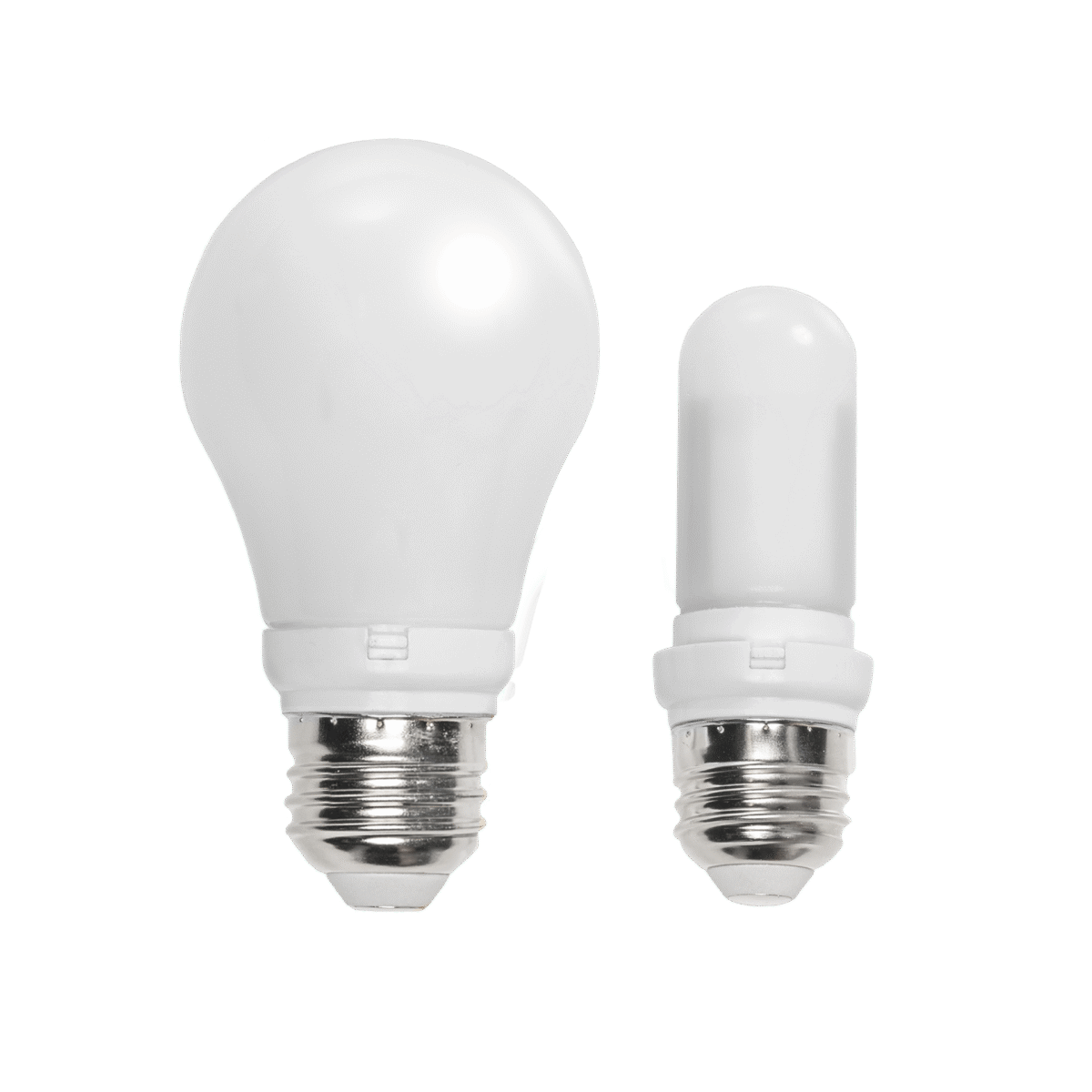

Dual Shapes: Features a classic frosted incandescent look or a bright, thin hotspot, maintaining efficiency and power comparable to full-color luminaires.
Color Precision: Equipped with Titan LED Engine for wide color temperature range and excellent color rendition, calibrated for advanced camera sensors.
Smooth Dimming: Ensures flicker-free, in-sync output regulation with consistent color throughout the dimming range, perfect for practical lighting and complex effects.
|
Order Code |
FP7-E26 |
|---|---|
|
LED Engine |
Titan LED Engine |
|
Colors |
RGBMintAmber |
|
Total LED Power |
5.25 W |
|
LED Power Draw |
3.3 W |
|
Luminous Flux 3200 K (with dome) |
149 Lumens |
|
Luminous Flux 4000 K (with dome) |
154 Lumens |
|
Luminous Flux 5500 K (with dome) |
160 Lumens |
|
Light Output 3200 K @ 1 m (with dome) |
18.3 Lux |
|
Light Output 4000 K @ 1 m (with dome) |
18.8 Lux |
|
Light Output 5500 K @ 1 m (with dome) |
19.6 Lux |
|
CRI (Ra) / TLCI 3200-6500K* |
≥96 |
|
Beam Angle (with dome) |
240° |
|
Field Angle (with dome) |
338° |
|
Strobe |
0 – 25 Hertz |
|
Pixels |
1 |
|
AC Input |
FP7-E26: 100-120 VAC |
|
AC Connector |
E26 / E27 / B22 |
|
Power Consumption (max.) |
4.25 W |
|
Wired DMX |
N/A |
|
CRMX Receiver |
Built-in |
|
Bluetooth Bridge BTB |
Built-in |
|
Wireless Protocols |
CRMX, UHF, Bluetooth, WiFi |
|
Wireless Range |
CRMX / UHF up to 100 m / 110 yds |
|
RDM Support |
Wireless |
|
Infrared Control |
Yes |
|
ControlSync |
No |
|
TouchSlider |
No |
|
IP Rating |
IP44 – Depending on socket used |
|
Ambient Operating Temperature |
0 – 40°C / 32 – 104 °F |
|
Weight |
0.081 kg / 0.179 lbs |
|
Dimensions Classic Look (Ø x H) |
Ø 55 mm x 99 mm (E26) / Ø 2.17″ x 3.90″ (E26) |
|
Dimensions Slim Look (Ø x H) |
Ø 27 mm / Ø 33 mm x 91.6 mm (E26) / Ø 1.06″ / Ø 1.30″ x 3.60″ (E26) |
|
Mounting Options |
E26 / E27 / B22 Socket |
What’s in the Box
- 1 x LunaBulb (FP7)
Available versions
- LunaBulb with E26 Thread (FP7-E26)
- LunaBulb with E27 Thread (FP7-E27)
- LunaBulb with B22 Thread (FP7-B22)
Typical Spectras
RF Characteristics
|
Wireless Modules |
ModulationModulation |
ERP (Transmitter) |
Channel Count |
|---|---|---|---|
|
EU: UHF***(863-870 MHz) |
FHSS |
<25 mW |
47 |
|
USA: UHF (917-922.20 MHz) |
FHSS |
<25 mW |
53 |
|
AUS: UHF (922.30-927.50 MHz) |
FHSS |
<25 mW |
53 |
|
SGP: UHF (920.50-924.50 MHz) |
FHSS |
<25 mW |
41 |
|
KOR: UHF (917.9-921.5 MHz) |
FHSS |
<25 mW |
10 |
|
RUS: UHF (868.75-869.12 MHz) |
FHSS |
<25 mW |
6 |
|
JPN: UHF (922.80-926.40 MHz) |
FHSS |
<25 mW |
19 |
|
CRMX (2402-2480 MHz) |
FHSS |
– |
79 |
|
Bluetooth 5.0 LE (2402-2480 MHz) |
FHSS |
10mW (BLE) |
40 |
|
WiFi (2412-2472 MHz) |
DSSS, OFDM |
<100 mW |
13 |
***General allocation of frequencies for use by short-range radio applications Spectrum usage regulations:
|
Frequency range in MHz1) |
Maximum equivalent radiant power (ERP) |
Additional parameters / frequency access and interference mitigation techniques |
|---|---|---|
|
865 – 868 |
25 mW |
Requirements for frequency access and mitigation techniques3) Alternatively, a maximum duty cycle2) of 1% can be used. |
|
868,0 – 868,6 |
25 mW |
Requirements for frequency access and mitigation techniques3) Alternatively, a maximum duty cycle2) of 1% can be used. |
|
868,7 – 869,2 |
25 mW |
Requirements for frequency access and mitigation techniques3) Alternatively, a maximum duty cycle2) of 0.1% can be used. |
|
869,40 – 869,65 |
500 mW |
Requirements for frequency access and mitigation techniques3) Alternatively, a maximum duty cycle2) of 10% can be used. |
|
869,7 – 870,0 |
25 mW |
Requirements for frequency access and mitigation techniques3) Alternatively, a maximum duty cycle2) of 1% can be used. |
1) The use of adjacent frequency bands within this table as a single frequency band is permitted, provided that the specific conditions for each of these adjacent frequency bands are met. 2) „duty cycle“ means the ratio of Σ(Ton)/(Tobs) expressed as a percentage, where ‚Ton‘ is the ‚on-time‘ of a single transmitting device and ‚Tobs‘ is the observation period Ton is measured in an observation frequency band (Fobs). Unless otherwise specified in this general allocation, Tobs is a continuous period of one hour and Fobs is the applicable frequency band in this general allocation (table). 3) Frequency access and interference mitigation techniques shall be used whose performance level at least meets the essential requirements of Directive 2014/53/EU or the Radio Equipment Act (FuAG). Where relevant techniques are described in harmonised standards, the references of which have been published in the Official Journal of the European Union pursuant to Directive 2014/53/EU, or parts thereof, performance shall be ensured which is at least equivalent to those techniques.
