Astera AX1 Pixel Tube Kit of 8

Name: Astera AX1 Pixel Tube Kit - Hire
SKU: 909
Price: 320.00 AUD
Availability: InStock

$320.00

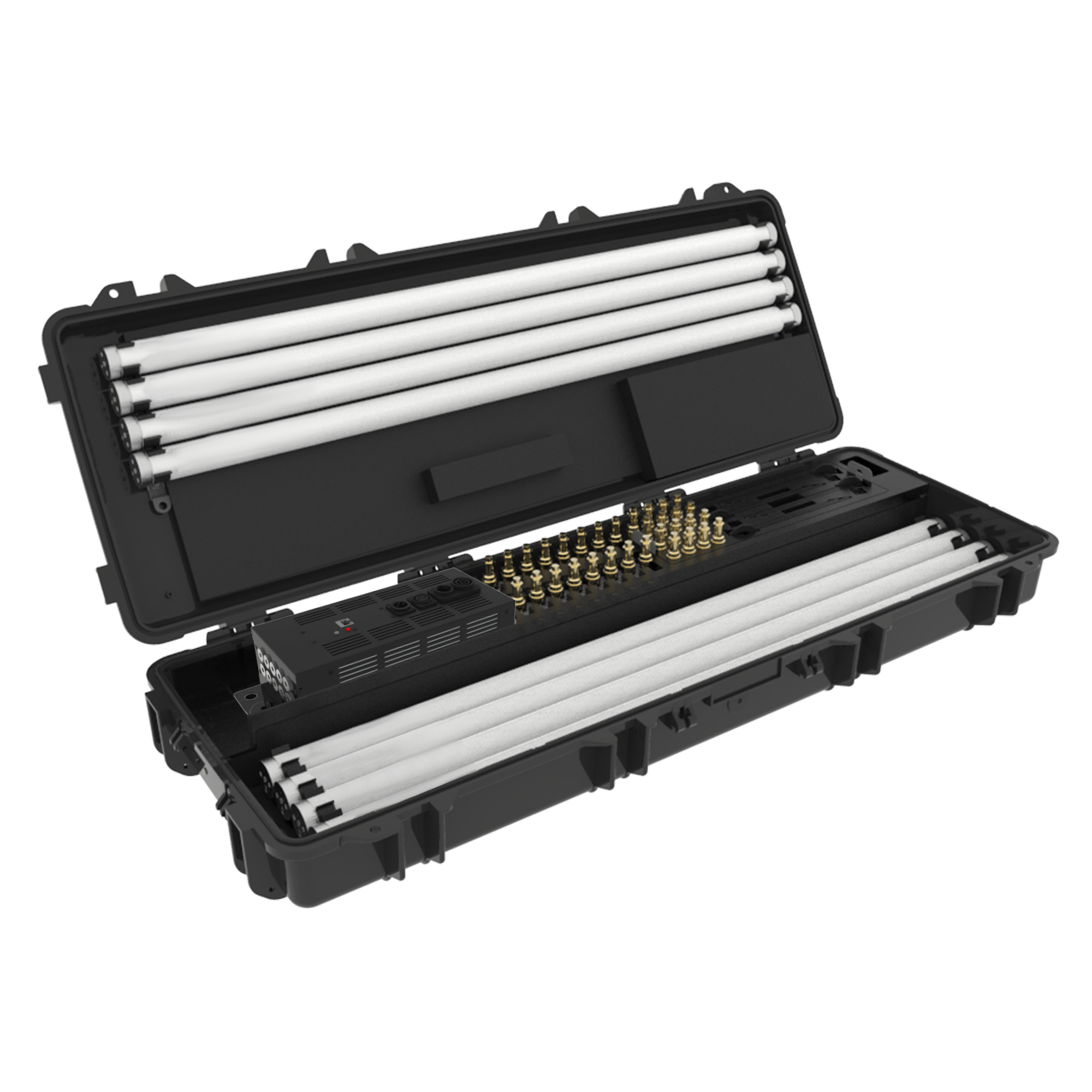

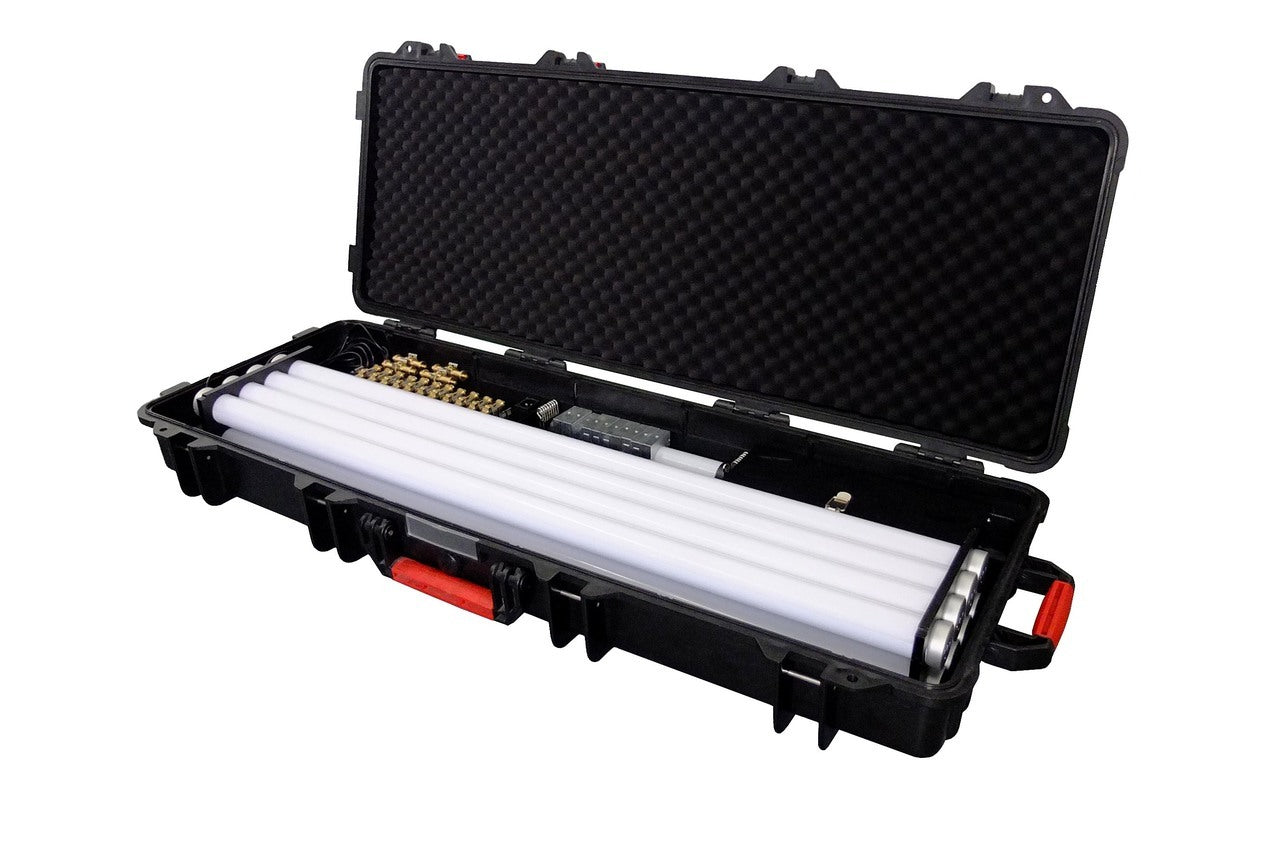

This Set of eight Pixeltube tubes is the kit to own, with everything you need to carry, mount and create. ?It comes in a ?specially designed case that charges while it protects and stores your Titan tubes. ?The kit includes a great range of accessories including clamps and spigots to mount or grip your tubes for use. The AX1 pixel tubes are a powerful pixel controllable LED RGBW baton that can be mounted to throw light and light your subject or be used in shot for a huge range of app controlled lighting effects. The possibilities are enormous, just add your creativity.

📅 Hire Period

Pickup Date *

Return Date *

Duration: 1 day (max 180) Hire Total: $320.00 (ex GST)

Daily rate: $320.00

All items in your cart will use these dates.

SKU: 909

Category: Static LED

Description
Reviews (0)

Description

28W RGBW LEDs – 180° Beam Angle

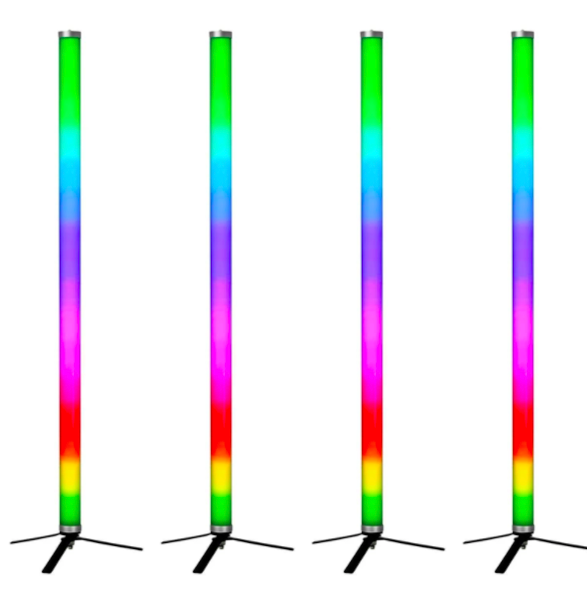

AX1 is a powerful pixel controllable LED RGBW baton that can be ceiling mounted or floor mounted on a stand provided in your group fitness room to give you some serious wow factor and create indirect lighting effects. A highly creative device that offers an infinite range of possibilities.

These amazing pixel tubes have inbuilt batteries for wireless OR wired use.

They can run by themselves for a random lighting experience, controlled via a remote control or easily connect to your phone or tablet using the ART 7 Control Box, to allow full control over colours, patterns and sequences.

The ART 7 is a smart control system where Infrared remote, wireless DMX and app work together to enable big setups that can be set up, monitored and adjusted in a fast and convenient way.

Please note that due to a component shortage, we had to do internal changes to Titan Tube and units manufactured after September 2022, they have the BTB feature built-in and are now called AX1-BTB.

Order Code	AX1	AX1-BTB
LED Engine	RGBW
Colors	RGBW
Total LED Power	28 W
LED Power Draw	16 W
Luminous Flux 3200K	723 Lumens
Luminous Flux 4000K	725 Lumens
Luminous Flux 5500K	717 Lumens
Light Output 3200 K @ 1m	254 Lux
Light Output 4000 K @ 1m	255 Lux
Light Output 5500 K @ 1m	253 Lux
CRI (Ra)/ TLCI 3200- 6500 K	≤88
Beam Angle	120°
Field Angle	180°
Strobe	0 – 25 Hertz
Pixels	16
Battery Runtime	up to 20 hours
Battery Lifetime	70 % after 300 cycles
Charging Time (nominal)	7 hours
DC Input	48 VDC – 0.5 A
DC Connector	5.5 mm x 2.1 mm
Wired DMX	No
CRMX Receiver	Built-in
BluetoothBridge BTB	No	Built-in
Wireless Protocols	CRMX, UHF	CRMX, UHF, Bluetooth, Wifi
Wireless Range	CRMX/UHF up to 300 m / 330 yds	CRMX / UHF up to 300 m / 330 yds Bluetooth up to 3 m / 3.3 yds
Infrared Control	Yes
IP Rating	IP65 (only with SiliconeCap)
Ambient Operating Temperature	0 – 40 °C / 32 – 104 °F
Weight	1 kg / 2.2 lbs
Dimensions (Ø x H)	Ø 43 x 1035 mm Ø 1.6″ x 40.7″
Mounting Options	2x M5 thread 2x Holder (with 2x M5 and 1x 1/4″-20UNC thread) 1x TubeStand

–
