Description

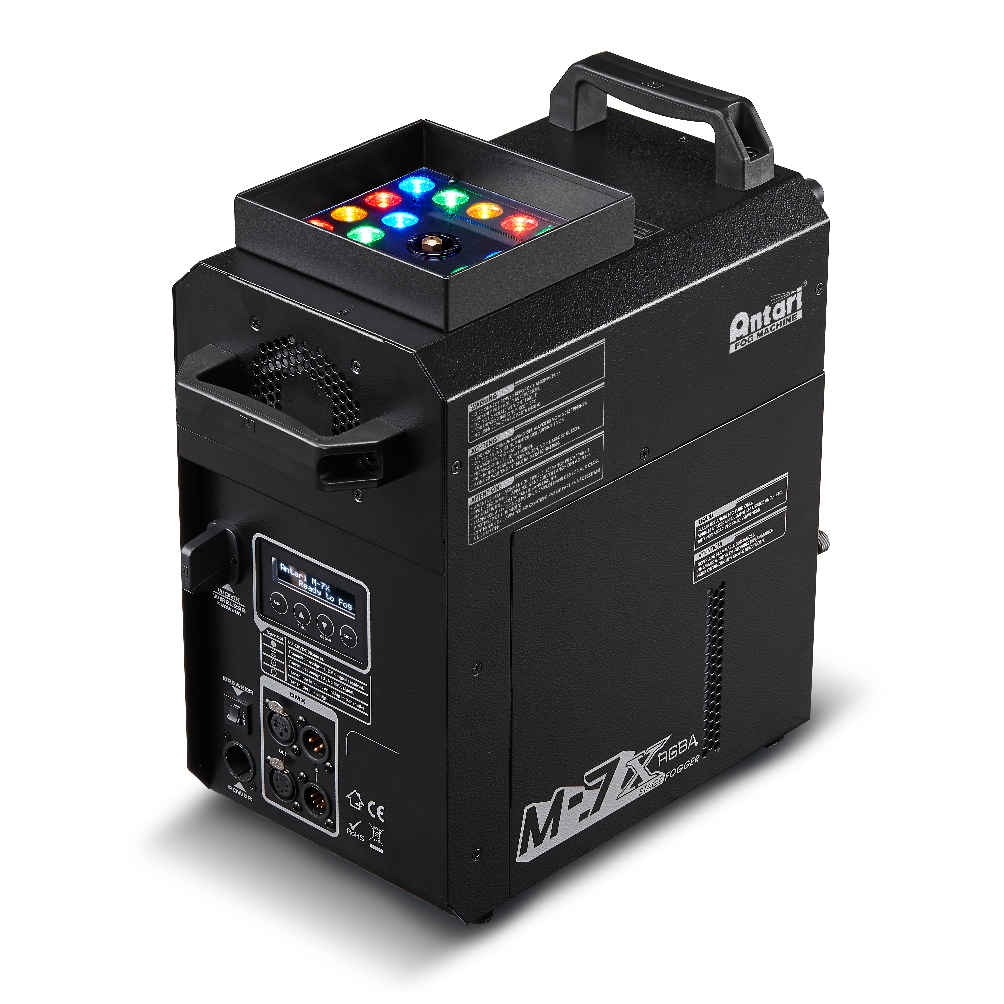

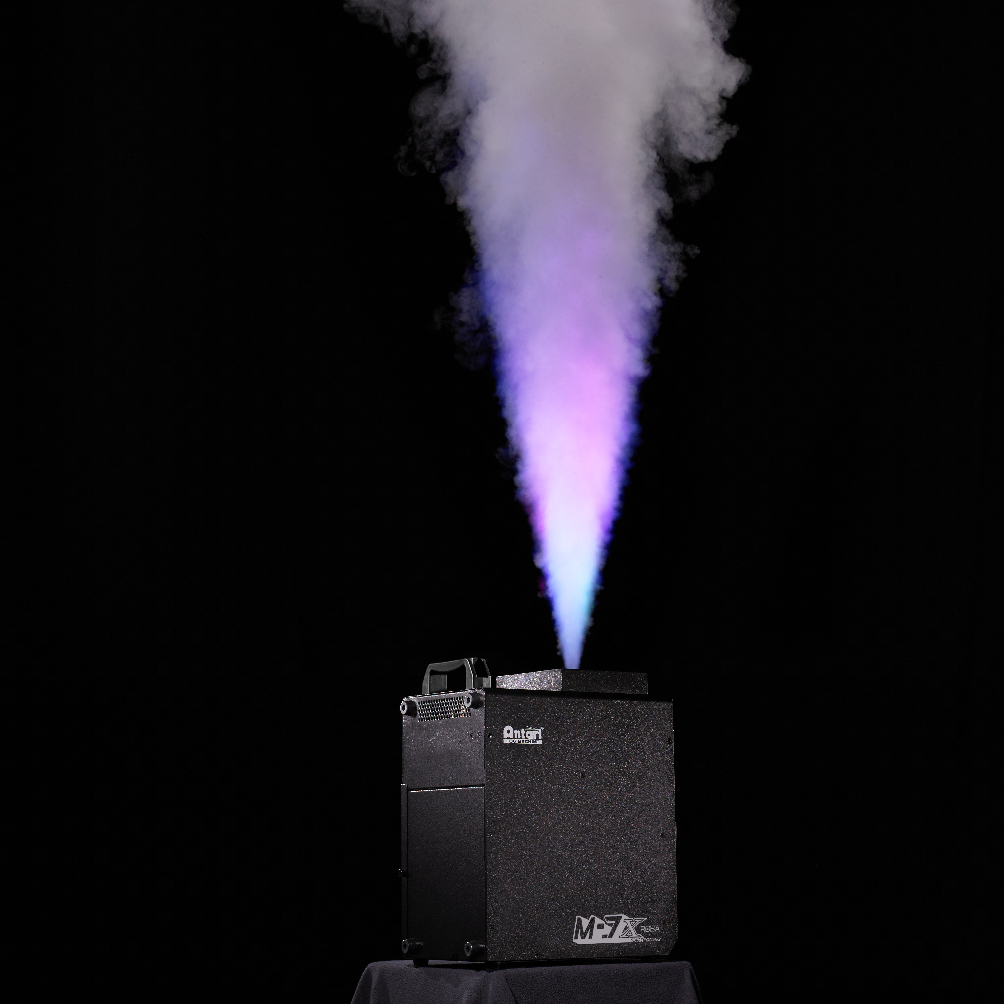

The M-7X, an upgrade from the M-7 RGBA, is tailored for large concerts and touring. Featuring a redesigned heater, it boasts more power, quicker bursts, and higher volume fog production. It offers versatility with vertical or horizontal operation and multiple rigging positions, making it the ideal choice for dynamic stage effects.
FEATURE
LCD Display with Membrane Push Button
22 x 3W LED
Master/Slave Function

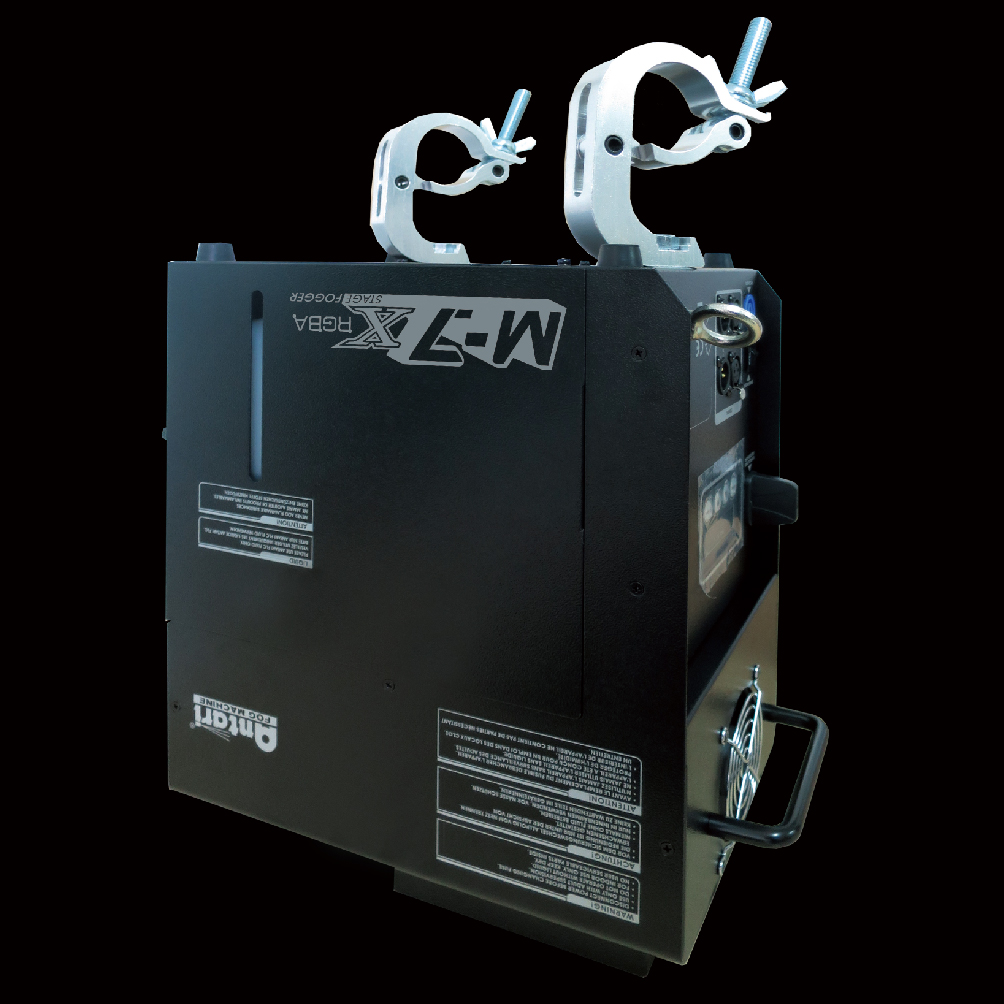

Multiple Rigging Angle
SPECIFICATION
Input Voltage
US Model : AC 100 – 120V, 50 / 60 Hz 13.0A
EU Model : AC 220 – 240V, 50 / 60 Hz 6.5A
Rated Power
1516W
Light Source
22 X 3W LED (5Red, 6Green, 6Blue, 5Amber)
Warm-Up Time
7 Minutes (approx)
Fluid Consumption
200 ml/min (100% Output)
Fluid Tank Capacity
2.4 Liters (0.63 Gallon)
Compatible Fluid
Antari FLC Super Light Fog Fluid
Ambient Temp. Range
0°C – 40°C (32°F – 104°F)
Output
10 Meters Height
Control Methods
Manual
Timer
DMX 512
Master / Slave
Wireless
Wireless DMX (Optional)
DMX Channels
9 Channel
Interface
Neutrik powerCON TRUE 1 (Power)
XLR 3-Pin & 5-Pin (DMX)
Included Accessories
W-2 Wireless Transmitter
Optional Accessories
TIMO-WTR-90 Wireless DMX
Dimension
L346 W193 H383 mm
L13.62 W7.60 H15.00 inch
Weight
14.0 kg
30.80 lbs
